Sub-UF Modul

Immersed ultrafiltration system

The Sub-UF Module is the heart of modern submerged ultrafiltration systems for water, wastewater and reuse.

Based on C-MEM™ technology using robust, PFAS-free HDPE hollow fibre membranes and a pore size of only 20 nanometres (0.02 µm), the UF module enables the reliable removal of turbidity and undissolved solids as well as 99.9999% of all bacteria, viruses and egg cells.

With “outside-in” filtration, the raw water is passed through the membrane from the outside, while the purified water is collected inside the hollow fibre. The result is crystal-clear permeate – even with heavily contaminated inflows.

Sub-UF Modul Broschüre

Applications

Wastewater & Reuse

Membrane bioreactor (MBR)
Membrane moving bed biofilm reactor (MBBR)
Landfill leachate
Greywater recycling plants
4th treatment stage / hygienisation

Industrial wastewater / Process water

Biomass condensate treatment
Process water treatment
Pre-treatment before NF / RO
For agriculture, paper, food, beverage, chemical and wood industries

Drinking water treatment

Removal of turbidity and microorganisms
Groundwater and surface water
Compact municipal drinking water plants
Pre-treatment for UV disinfection
Combination with C-ION™ plasma for arsenic, iron and manganese removal

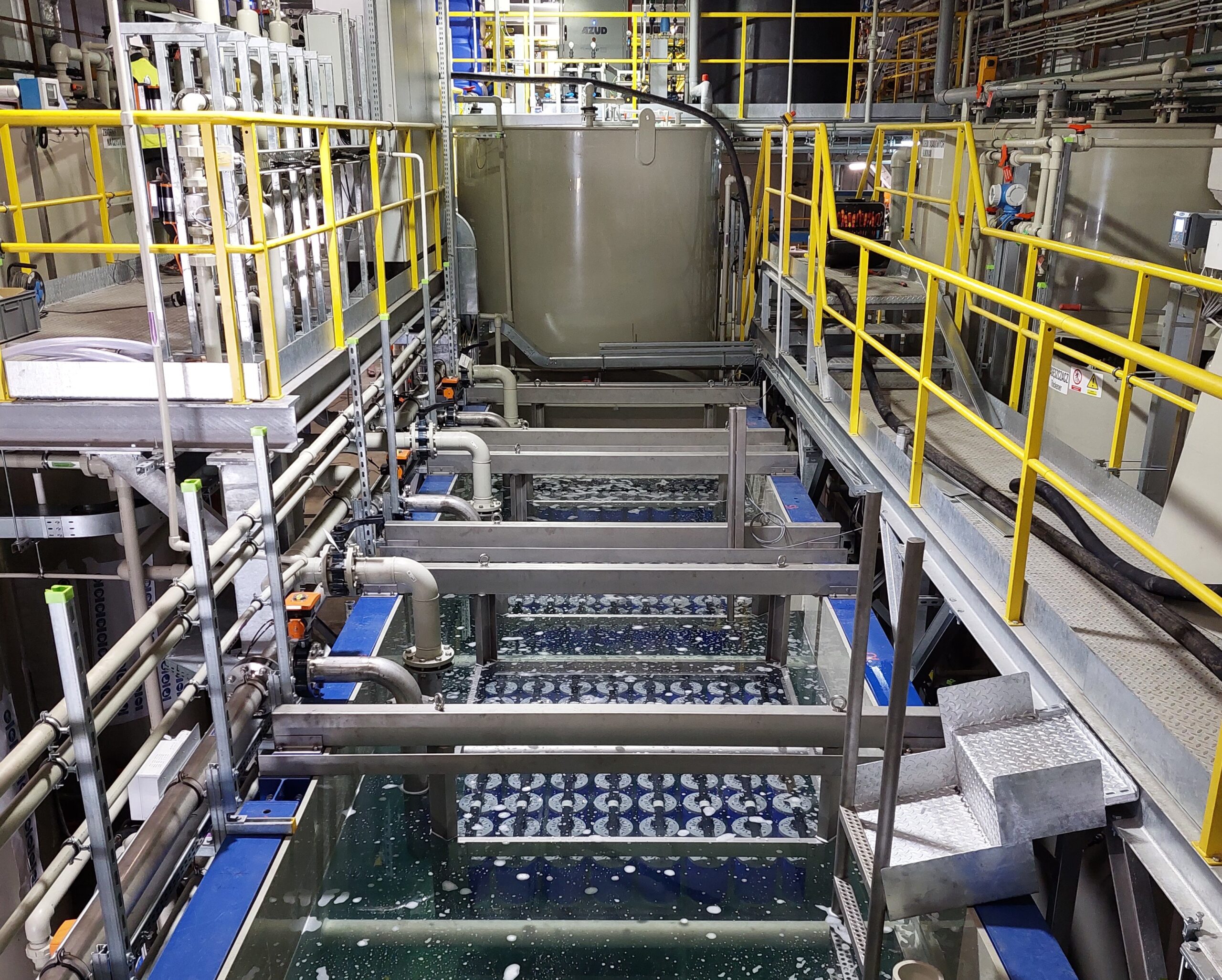

Sub-UF Module Installation

Product Highlights

HDPE hollow fibre (PFAS-free)
Integration of hollow fibres into optimised cartridge technology for compact design, membrane protection and low operating costs
Low height, very high buffer volume
Stable storage, no preservation necessary
Chlorine resistance: up to 5,000 ppm free chlorine (25 °C, pH 9.5) / 1.0 million ppmh cumulative total chlorine contact
Efficient chemical cleaning
Highly effective air purging with low air consumption
No regular filter replacement necessary with correct maintenance (service life of up to 10 years possible)
Compact design, space-saving for easy retrofitting
Quick installation, connection ready
Maintenance-friendly design
Developed and manufactured in Europe

Advantages at a Glance

Abscheideleistung

20 nm (0,02 µm) — entfernt 99,9999 % Bakterien und Viren, sichere Feststoffentfernung.

Robuste HDPE-Membran

PFAS-frei, chlorbeständig, langlebig.

Hohe Flächendichte

Maximale Leistung bei minimalem Footprint.

Niedriger OPEX

Energieeffiziente Reinigung, geringer Chemikalienbedarf.

Modular integrierbar

Getaucht oder druckbetrieben einsetzbar.

Installationsfertig

Plug-and-Play, wartungsfreundlich.

Data Sheet Sub-UF Module 64-6 EN

Data Sheet Sub-UF Module 64-12 EN
